1986-89 Nissan 300ZX Manual Shifter Trim Bezel 3D Scan Mesh

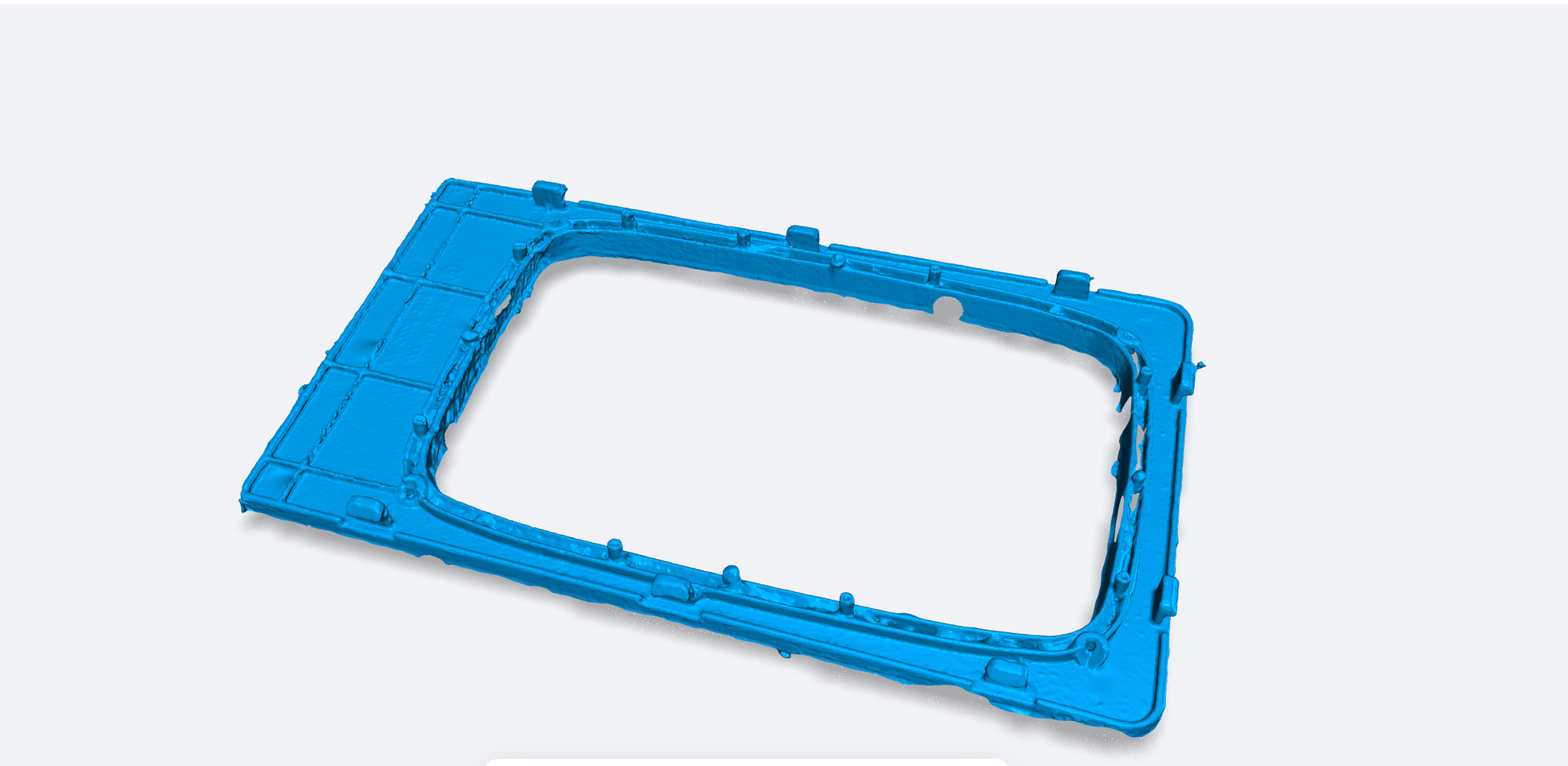

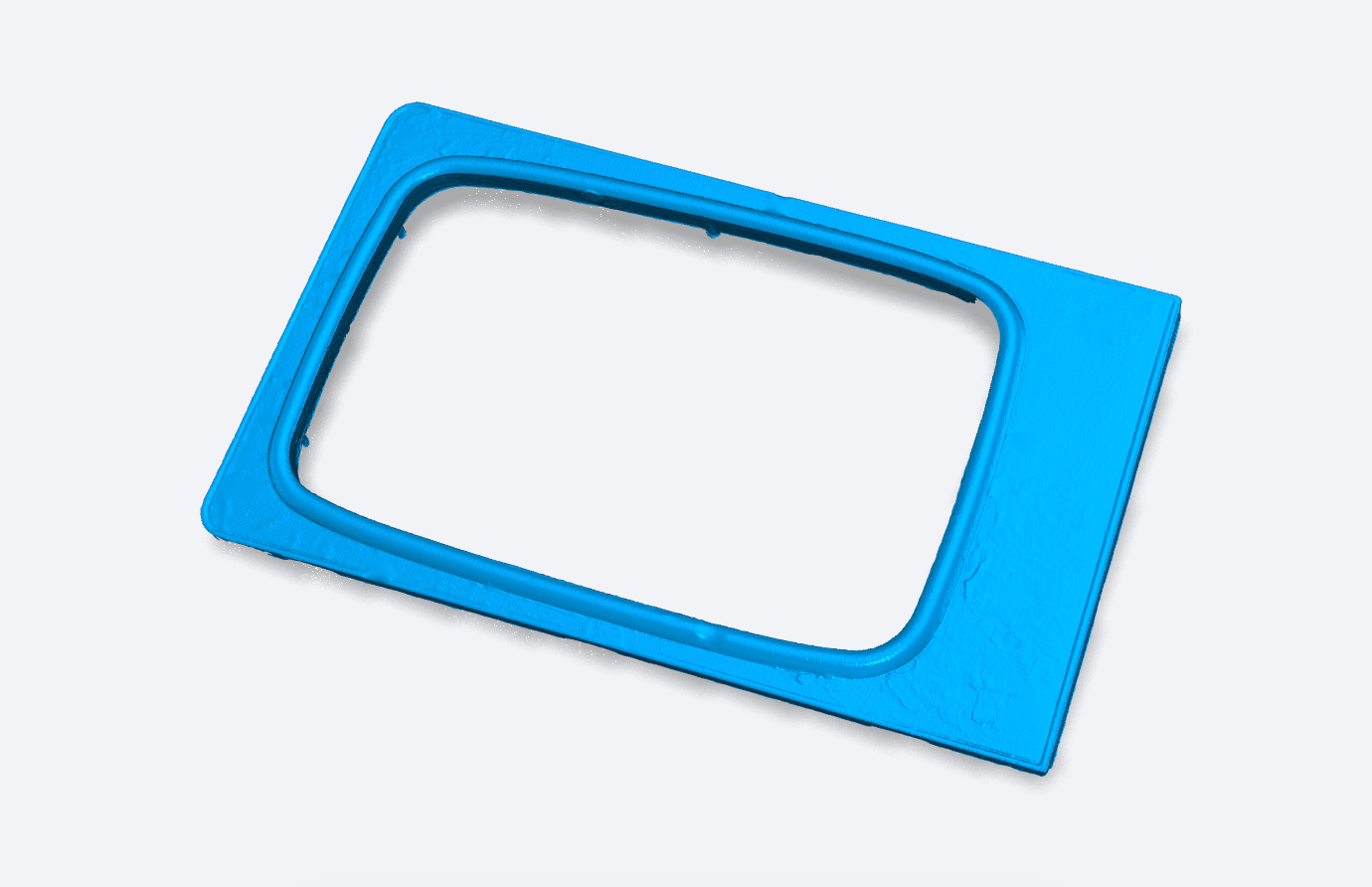

Want to make your own modified shifter bezel but don't have all the measurements? Here are the two scans of the stock shifter bezel, upper and lower. The scans need to be aligned in whatever CAD software you use.

Like all other bezels, this one was slightly broken when scanned so some features like the screw holes or pins may be damaged or missing, however it is still evident where they were.

This is not a water proof scan and cannot be turned immediately into a solid body.

Works great as a reference for measurements and experimenting.

This is a digital download and can be directly downloaded. Not for resale, personal use only.

Scanned with an Einstar Vega in HD mode.
